Specification | Details |
---|---|

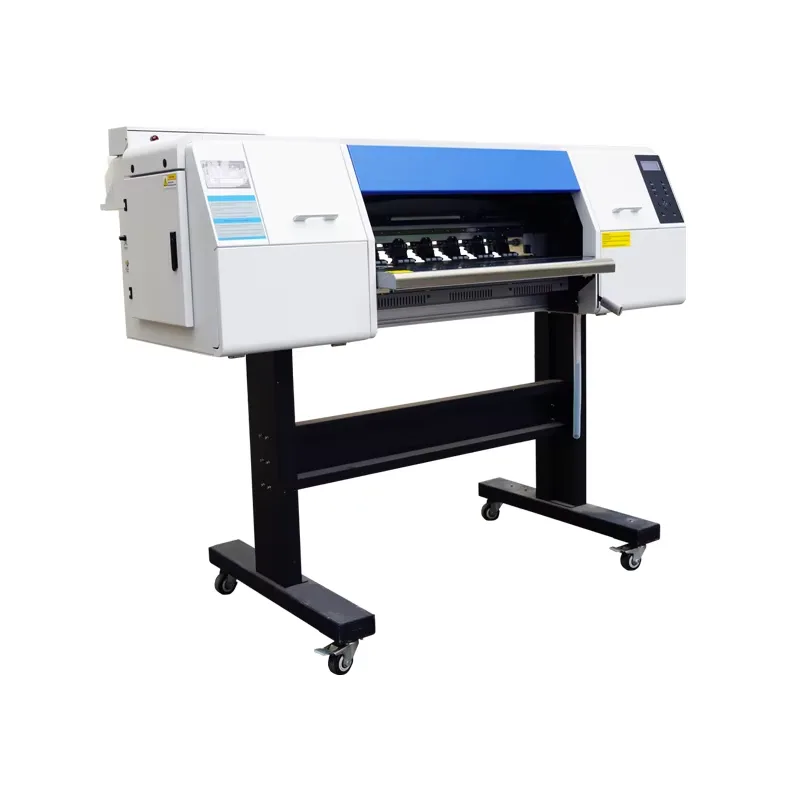

Machine Model | 8074 – 3 Inkjet Film Printer |
Printhead Specification | Epson 3200 – A1 |
Effective Width | 600mm |
Ink Type | Printing Ink |
Ink Supply Method | Suction Positive Pressure Supply |
Ink Color | CMYK + W |
Printing Interface | High – speed Gigabit Network Transmission |
Medium Transmission | Conveyor Belt Discharge System |
Working Environment | Temperature: 18 – 30°C, Humidity: 40 – 60% |
Input Power Supply | AC 220V |
Equipment Power | 1500W |
Equipment Weight | Net weight 216kg / Gross weight 260kg |
Machine Size | 1920X800X1667mm |
Packaging Size | 2300X760X860mm |
Specification | Details |
---|---|

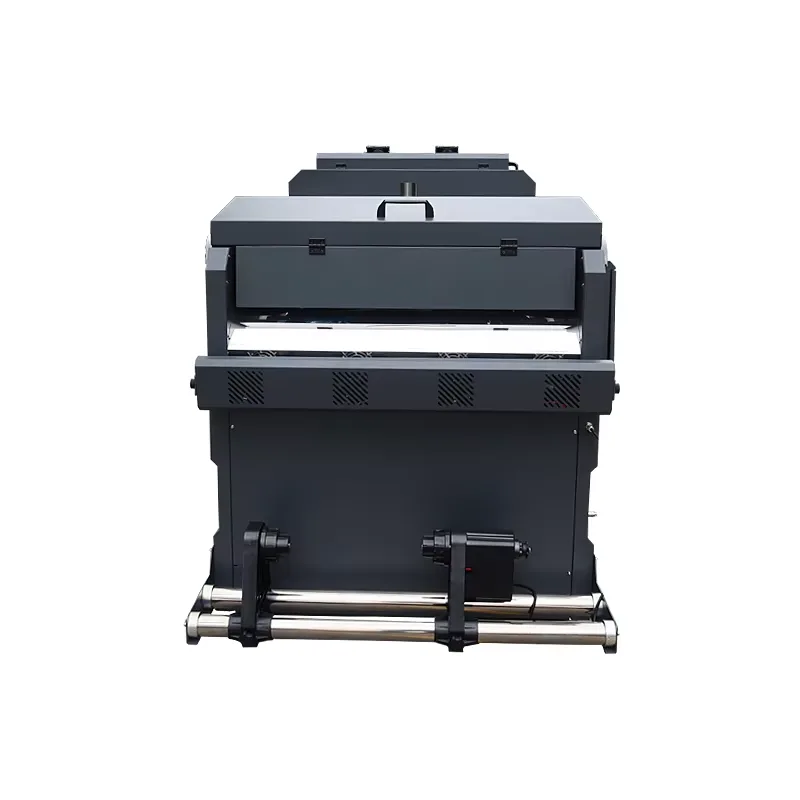

Machine Model | DF700L Powder Drying Machine |
Drying Method | Tube Heating |
Heating Width | 600mm |
Heating Temperature | Adjustable from 20 – 200°C (maximum 200°C) |
Equipment Power | 5800W |
Working Environment | Temperature: 18 – 30°C, Humidity: 40 – 60% |
Input Power Supply | AC 220V |
Equipment Weight | Net weight 190kg / Gross weight 230kg |
Machine Size | 2414X1050X1080mm |
Packaging Size | 1900X1150X1280mm |
