24”Dual Printheads DTF Printer
| Item | Details |
|---|---|
| Model | T602 |
| Printhead and quantity | i3200-A1 2PCS, i3200-A1 1PC & i3200(8)-A1HD 1PC |
| Printing color | CMYK+W(5 Color). Fluorescent 9 Color Scheme: C/M/Y/W/K/FY/FO/FG/FM |
| Printing speed | 4Pass: 12m²/h; 6Pass: 10m²/h; 8Pass: 8m²/h. 4Pass: 6m²/h; 6Pass: 5m²/h |
| Printing width | 24″ |
| Media type | DTF Film |
| RIP software | Standard with Maintop or Printfactory. For Option: RIIN, PhotoPrint, CADlink |
| Temperature/humidity | Temperature: 20 – 35°C. Humidity: 45 – 65% |
| Power | 1.6KW |
| Voltage | 110V/220V |
| Operating system | Windows 11(64bit) / Windows 10(64bit) |

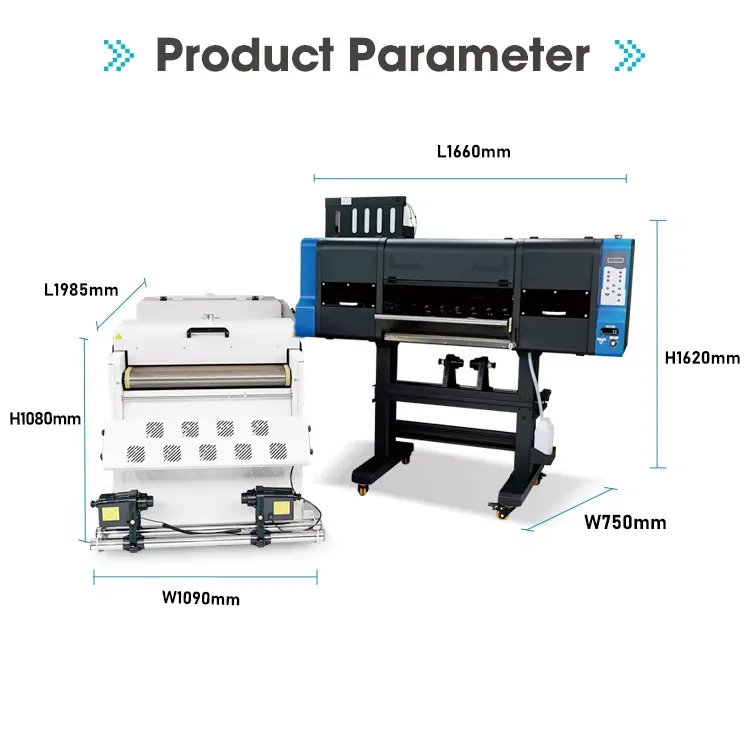

| Machine size | L1660W750H1620mm |
| Package size | L2040W740H840mm |
| Net weight | 150KG |
Shaking and Color Fixing Machine
| Item | Details |
|---|---|
| Model | M6502 |
| Retractable Media Width | 24″ |
| Power Supply | AC220V/110V +/-10%, 50/60 +/HZ |
| Power | 4000 – 6600W |
| Temperature | The highest 140°C /284°F |
| Media | DTF Film |
| Powder Control | Shake and powder |
| UI Control | Touch screen multi-mode operation |
| Filter | Smoke and oil purifier |
| Dryer | Front guide plate heating, Segmented heating drying up and down |
| Take-Up System | Automatic induction Tension control material |
| Conveyor | Belt intelligent speed control |
| Machine Size | L2262W1100H1020mm |
| Packing Size | L2300W1150H1260mm |
| Net Weight/Gross Weight | 300KG/400KG |
